Press-locked Gratings

Press-locked Gratings

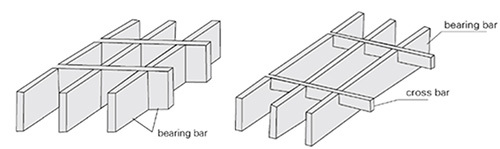

Press-locked GratingsPress-locked is achieved by slotting rectangular cross bars into notched loading bars. This process provides grating with a smooth surface and clean appearance, making it ideal for architectural applications such as Building Exteriors, Balconies, Sun Shields, and Decorative Ceilings.



Press-locked grating is available in two types:

1.Standard Press-locked: Loading bars are notched and interlocked with cross bars under high-pressure hydraulic press.

2. Full-locked: Loading bars and cross bars of equal height are notched and mutually interlocked under extreme pressure.



Press-locked Gratings



Material

Carbon Steel

Stainless steel (304 or 316)

Top surface

Plain or serrated

Plain or serrated

Bearing Bar

Pitch(mm)

20

22.2

33.3

40

50

20

22.2

33.3

40

50

Cross bar

Pitch (mm)

20

33.3

40

50

100

20

33.3

40

50

100

Finishs

  • Hot dip galvanized

  • Bitumen Paint dipped

  • Mill finished

  • Powder coated

  • Mill finish

  • Electro-polished or Passivated
