Ball-Joint Stanchion and Hand-railing

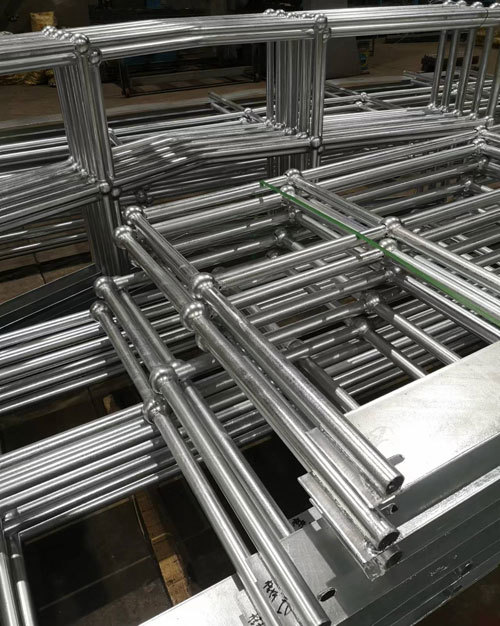

Ball-joint Stanchion and Handrail have advantages such as attractive appearance, convenient installation, robustness, and good anti-corrosive property after hot dip galvanized. It is widely used in such industrial and construction engineering fields as electric power, petrochemicals, machinery, sewage treatment plant, waterworks, gardens, municipal roads, airports and wharfs.

VALLEGE manufactures and supplies custom-designed safety barrier and guardrail systems for a variety of applications.



Safety Barrier systems are supplied complete with both handrail and knee rail, and can be pre-fabricated by VALLEGE ready for installation. VALLEGE supplies the full range of ancillary and accessory products for complete safety, including angle or horizontal closure bends, angled frames, kick plates.



VALLEGE safety barriers are suitable for walkways and ramps, mezzanine floors and gangway access for lighting etc.

Manufactured Standard:



A: UK BS6399

B: AUS: 1657

C: CHN: YB/T 4001.2-2019

Ball-Joint Stanchion & Hand-railing

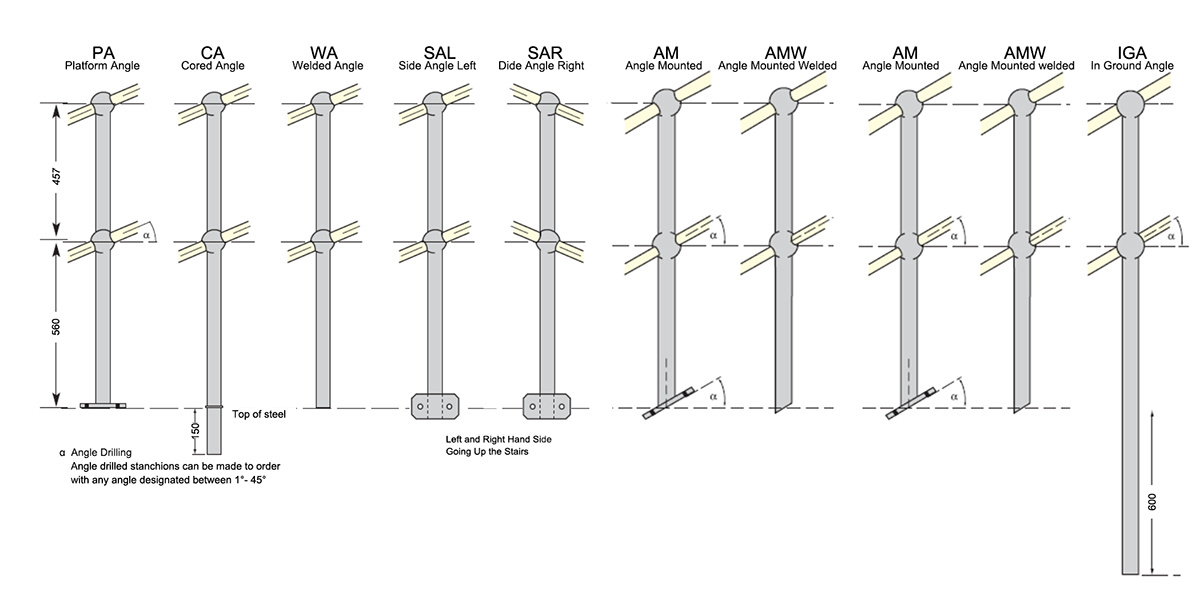

Type of Horizontal stanchions

Type of Horizontal stanchions

Type of Angled Stanchions

Type of Horizontal stanchions

Materials of Stanchion and Hand-railing

VALLEGE handrail and stanchions are available in two material types;

  • Mild Steel
  • Stainless Steel

Specification for mild steel

Style

Ball diameter OD

Stanchion pipe diameter OD

Handrails diameter OD

Knee rail pipe diameter OD

Standard

76mm

48.0mm

42.3mm

33.5mm

Economy

66mm

42.3mm

33.5mm

26.8mm

Specification for stainless steel

Style

Ball diameter OD

Stanchion pipe diameter OD

Handrails diameter OD

Knee rail pipe diameter OD

Standard

85mm

51.0mm

51mm

38.1mm

Economy

70mm

38.1mm

38.1mm

32mm

Note:

1. Rail height: single rail manufactured according to design, double rail is 1.1m, and triple rail is 1.2m.

2. Stanchion spacing: mainly four kinds as 1000mm,1200mm,1500mm,2000mm.

Horizontal Closure Bends



Standard Pipe

Steel Handrail: 32NB med OD / 3.2mm WT

Steel Knee-rail: 25NB med OD / 3.2mm WT

Standard radius: 140mm centre line

Ball-Joint Stanchion & Hand-railing

Angle Closure Bends



Standard Pipe

Steel Handrail: 32NB med OD / 3.2mm WT

Steel Knee-rail: 25NB med OD / 3.2mm WT

Standard radius: 140mm centre line

 Angles available: 1º to 45º



Available in other pipe sizes, talk to your sales consultant to discuss your project.

Ball-Joint Stanchion & Hand-railing

Rail Bends



Standard Pipe

Steel Handrail: 32NB med OD / 3.2mm WT

Steel Knee-rail: 25NB med OD / 3.2mm WT

Standard radius: 140mm centre line

Standard Leg: 300mm x 300mm

 Angles available: 90º to 180º

Ball-Joint Stanchion & Hand-railing

Slip Joints



Slip joints are used:

1. When joining the top or knee-rail to another piece of pipe;

2. When an expansion joint is required, or

3. When joining rails without using a butt weld

4. The slip joint can be fixed by welding, or by using pins.

Base Plates

Ball-Joint Stanchion & Hand-railing

Finish



U​          Untreated

G​          Hot Dipped Galvanized

P​          Painted to project specifications

PC​      Powder Coated

E          Electro-polished (Stainless Steel only)
